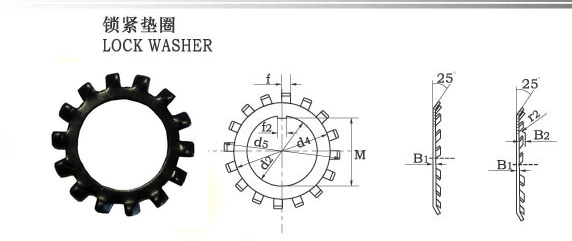

锁紧垫圈 GB9160.4-88
| 型号 |
基本尺寸（mm） |
重量(kg) |
| d3 |
d5 |
M |
f1 |
B1 |
| MB00 |
10 |
21 |
8.5 |
3 |
1.0 |
0.131 |
| MB01 |
12 |
25 |
10.5 |
3 |
1.0 |
0.192 |
| MB02 |
15 |
28 |
13.5 |
4 |
1.0 |
0.253 |
| MB03 |
17 |
32 |
15.5 |
4 |
1.0 |
0.313 |
| MB04 |
20 |
36 |
18.5 |
4 |
1.0 |
0.350 |
| MB05 |
25 |
42 |
23.0 |
5 |
1.25 |
0.640 |
| MB06 |
30 |
49 |
27.5 |
5 |
1.25 |
0.780 |
| MB07 |
35 |
57 |
32.5 |
5 |
1.25 |
1.040 |
| MB08 |
40 |
62 |
37.5 |
6 |
1.25 |
1.230 |
| MB09 |
45 |
69 |
42.5 |
6 |
1.25 |
1.52 |
| MB10 |
50 |
74 |
47.5 |
6 |
1.25 |
1.60 |
| MB11 |
55 |
81 |
52.5 |
7 |
1.5 |
1.96 |
| MB12 |
60 |
86 |
57.5 |
7 |
1.5 |
2.53 |
| MB13 |
65 |
92 |
62.5 |
7 |
1.5 |
2.90 |
| MB14 |
70 |
98 |
66.5 |
8 |
1.5 |
3.34 |
| MB15 |
75 |
104 |
71.5 |
8 |
1.5 |
3.56 |
| MB16 |
80 |
112 |
76.5 |
8 |
1.8 |
4.64 |
| MB17 |
85 |
119 |
81.5 |
8 |
1.8 |
5.24 |
| MB18 |
90 |
126 |
86.5 |
10 |
1.8 |
6.23 |
| MB19 |
95 |
133 |
91.5 |
10 |
1.8 |
6.70 |
| MB20 |
100 |
142 |
96.5 |
12 |
1.8 |
7.65 |
| MB21 |
105 |
145 |
100.5 |
12 |
1.8 |
8.26 |
| MB22 |
110 |
154 |
105.5 |
132 |
1.8 |
9.40 |
| MB23 |
115 |
159 |
110.5 |
12 |
2.0 |
10.8 |
| MB24 |
120 |
164 |
115.0 |
14 |
2.0 |
10.5 |
| MB25 |
125 |
170 |
120.0 |
14 |
2.0 |
11.8 |
| MB26 |
130 |
175 |
125.0 |
14 |
2.0 |
11.3 |
| MB27 |
135 |
185 |
130.0 |
14 |
2.0 |
14.4 |
| MB28 |
140 |
192 |
130.5 |
16 |
2.0 |
14.2 |
| MB29 |
145 |
202 |
140.0 |
16 |
2.0 |
16.8 |
| MB30 |
150 |
205 |
145.0 |
16 |
2.0 |
15.5 |
| MB31 |
155 |
212 |
147.5 |
16 |
2.5 |
20.9 |
| MB32 |
160 |
217 |
154.0 |
18 |
2.5 |
22.2 |
| MB33 |
165 |
222 |
157.5 |
18 |
2.5 |
24.1 |
| MB34 |
170 |
232 |
164.0 |
18 |
2.5 |
24.7 |
| MB36 |
180 |
242 |
174.0 |
20 |
2.5 |
26.8 |
| MB38 |
190 |
252 |
184.0 |
20 |
2.5 |
27.8 |
| MB40 |
200 |
262 |
194.0 |
20 |
2.5 |
29.3 |
|
