2100 适用范围
密封腔压力：P≤0～1.2MPa
密封腔温度：t=-40℃～150℃
线 速 度：Vg≤15m/s |
 |
■单端面
■非平衡型密封
■橡胶波纹管 |

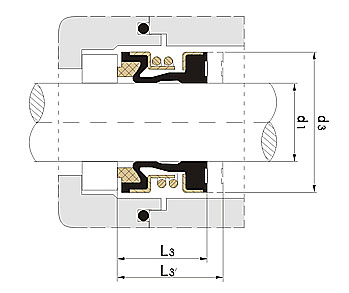

| 2100 装配尺寸 (inches) |
规格/尺寸 |
d1
(-0.002) |
d3
(max) |
L3
(±0.04) |
L3
(±0.04) |
|
| 2100-0.375 |
0.375 |
0.787 |
0.591 |
|
|
| 2100-0.500 |
0.500 |
0.945 |
0.591 |
0.812 |
|
| 2100-0.625 |
0.625 |
1.024 |
0.591 |
0.875 |
|
| 2100-0.750 |
0.750 |
1.260 |
0.787 |
0.875 |
|
| 2100-0.875 |
0.875 |
1.417 |
0.787 |
0.937 |
|
| 2100-1.000 |
1.000 |
1.535 |
0.787 |
1.000 |
|
| 2100-1.125 |
1.125 |
1.654 |
1.024 |
1.062 |
|
| 2100-1.250 |
1.250 |
1.811 |
1.024 |
1.062 |
|
| 2100-1.375 |
1.375 |
1.929 |
1.024 |
1.125 |
|
| 2100-1.500 |
1.500 |
2.216 |
1.181 |
1.187 |
|
| 2100-1.625 |
1.625 |
2.205 |
1.181 |
1.375 |
|
| 2100-1.750 |
1.750 |
2.402 |
1.181 |
1.375 |
|
| 2100-1.875 |
1.875 |
2.520 |
1.181 |
1.500 |
|
| 2100-2.000 |
2.000 |
2.598 |
1.181 |
1.500 |
|
| 2100-2.125 |
2.125 |
2.717 |
1.181 |
1.687 |
|
| 2100-2.250 |
2.250 |
3.031 |
1.299 |
1.687 |
|
| 2100-2.375 |
2.375 |
3.150 |
1.299 |
1.812 |
|
| 2100-2.500 |
2.500 |
3.268 |
1.299 |
1.812 |
|
| 2100 装配尺寸 (mm) |
规格/尺寸 |
d1
(h6) |
d3
(max) |
L3
(±1.0) |
L3
(±1.0) |
|
| 2100-10 |
10 |
20 |
15 |
27.5 |
|
| 2100-12 |
12 |
22 |
15 |
26.5 |
|
| 2100-14 |
14 |
24 |
15 |
29.0 |
|
| 2100-15 |
15 |
25 |
15 |
29.0 |
|
| 2100-16 |
16 |
26 |
15 |
29.0 |
|
| 2100-18 |
18 |
32 |
20 |
31.5 |
|
| 2100-20 |
20 |
34 |
20 |
31.5 |
|
| 2100-22 |
22 |
36 |
20 |
31.5 |
|
| 2100-24 |
24 |
38 |
20 |
34.0 |
|
| 2100-25 |
25 |
39 |
20 |
34.0 |
|
| 2100-28 |
28 |
42 |
26 |
36.5 |
|
| 2100-30 |
30 |
44 |
26 |
35.5 |
|
| 2100-32 |
32 |
46 |
26 |
35.5 |
|
| 2100-33 |
33 |
47 |
26 |
35.5 |
|
| 2100-35 |
35 |
49 |
26 |
34.5 |
|
| 2100-38 |
38 |
54 |
30 |
37.0 |
|
| 2100-40 |
40 |
56 |
30 |
37.0 |
|
| 2100-43 |
43 |
59 |
30 |
37.0 |
|
| 2100-45 |
45 |
61 |
30 |
37.0 |
|
| 2100-48 |
48 |
64 |
30 |
35.0 |
|
| 2100-50 |
50 |
66 |
30 |
37.5 |
|
|
