 560A系列：
 技术参数：
- 压力：1MPa
- 线速度：12米/秒
- 温度：-30℃~200℃
- 静环（陶瓷/碳化硅/碳化钨）
- 动环（石墨/碳化硅/碳化钨）
- 辅助密封（丁腈胶/三元乙丙胶/氟胶）
- 弹簧及冲件（不锈钢）
|
|

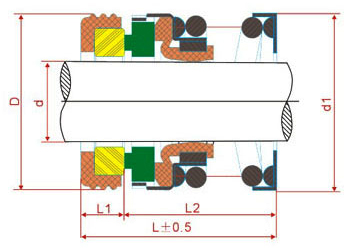

| 型号Model |
d |
dl |
D |
L |
L1 |
L2 |
| 560A-10 |
10 |
23.5 |
24 |
25 |
7 |
18 |
| 560A-11 |
11 |
23.5 |
24 |
25 |
7 |
18 |
| 560A-12 |
12 |
26.0 |
26 |
25 |
7 |
18 |
| 560A-14 |
14 |
28.0 |
28 |
25.5 |
7 |
18.5 |
| 560A-15 |
15 |
28.0 |
28 |
29.5 |
7 |
22.5 |
| 560A-16 |
16 |
30.0 |
32 |
33.5 |
10 |
23.5 |
| 560A-18 |
18 |
32.5 |
35 |
36.5 |
10 |
26.5 |
| 560A-19 |
19 |
32.5 |
35 |
36.5 |
10 |
26.5 |
| 560A-20 |
20 |
35.5 |
38 |
38 |
10 |
28 |
| 560A-22 |
22 |
37.5 |
40 |
40.3 |
10 |
30.3 |
| 560A-24 |
24 |
42.0 |
44 |
39.3 |
10 |
28.3 |
| 560A-25 |
25 |
42.0 |
44 |
39.3 |
10 |
28.3 |
| 560A-28 |
28 |
45.5 |
46 |
40 |
10 |
30 |
| 560A-30 |
30 |
48.0 |
50 |
40 |
10 |
36 |
| 560A-32 |
32 |
50.0 |
54 |
40 |
10 |
30 |
| 560A-35 |
35 |
54.5 |
58 |
42 |
10 |
32 |
| 560A-38 |
38 |
58.5 |
60 |
42.6 |
10 |
32.6 |
| 560A-40 |
40 |
62.5 |
64 |
42.6 |
10 |
32.6 |
| 560A-45 |
45 |
66.5 |
66 |
45 |
10 |
35 |
| 560A-50 |
50 |
72.5 |
72 |
54.6 |
10 |
44.6 |
| 560A-55 |
55 |
72 |
75 |
59.8 |
12 |
47.8 |
| 560A-60 |
60 |
80 |
80 |
63 |
12 |
51 |
| 560A-65 |
65 |
85 |
85 |
64 |
13 |
51 |
|
|
