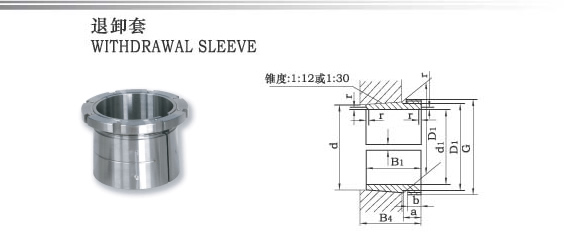

退卸套 JB/T7919.2-1999
退卸套对装在轴端，经常拆卸、规格较大的圆锥孔轴承（调心球轴承，调心滚子轴承，双列圆柱滚子轴承）装拆维修特别方便，广泛用于轻工、冶金、轧机等机械设备上。 |
|
退卸套AH39系列参数 |
| 型号 |
螺纹 |
尺 寸（mm） |
螺母型号 |
适用轴承 |
| d |
d1 |
B1 |
调心滚子轴承 |
| AH3934 |
M180X3 |
170 |
160 |
59 |
KML36 |
23934K |
| AH3936 |
M190X3 |
180 |
170 |
66 |
KML38 |
23936K |
| AH3938 |
M200X3 |
190 |
180 |
66 |
KML40 |
23938K |
| AH3940 |
Tr210X4 |
200 |
190 |
77 |
KML42 |
23940K |
| AH3944 |
Tr230X4 |
220 |
200 |
77 |
KML46 |
23944K |
| AH3948 |
Tr250X4 |
240 |
220 |
77 |
KML50 |
23945K |
| AH3952 |
Tr280X4 |
260 |
240 |
94 |
KML56 |
23952K |
| AH3956 |
Tr300X4 |
280 |
260 |
94 |
KML60 |
23956K |
| AH3960 |
Tr320X5 |
300 |
280 |
112 |
KML64 |
23960K |
| AH3964 |
Tr340X5 |
320 |
300 |
112 |
KML68 |
23964K |
| AH3968 |
Tr360X5 |
340 |
320 |
112 |
KML72 |
23968K |
| AH3972 |
Tr380X5 |
360 |
340 |
112 |
KML76 |
23972K |
| AH3976 |
Tr400X5 |
380 |
360 |
130 |
KML80 |
23976K |
| AH3980 |
Tr420X5 |
400 |
380 |
130 |
KML84 |
23980K |
| AH3984 |
Tr440X5 |
420 |
400 |
130 |
KML88 |
23984K |
| AH3988 |
Tr460X5 |
440 |
420 |
1454 |
KML92 |
23988K |
| AH3992 |
Tr480X5 |
460 |
440 |
145 |
KML96 |
23992K |
| AH3996 |
Tr500X5 |
480 |
460 |
158 |
KML/500 |
23996K |
| AH39/500 |
Tr530X6 |
500 |
480 |
162 |
KML/530 |
239/500K |
| AH39/530 |
Tr560X6 |
530 |
500 |
175 |
KML/560 |
239/530K |
| AH39/560 |
Tr600X6 |
560 |
530 |
180 |
KML/600 |
239/560K |
| AH39/600 |
Tr630X6 |
600 |
570 |
192 |
KML/630 |
239/600K |
| AH39/630 |
Tr670X6 |
630 |
600 |
210 |
KML/670 |
239/630K |
| AH39/670 |
Tr710X7 |
670 |
630 |
216 |
KML/710 |
239/670K |
| AH39/710 |
Tr750X7 |
710 |
670 |
228 |
KML/750 |
239/710K |
| AH39/750 |
Tr800X7 |
750 |
710 |
234 |
KML/800 |
239/750K |
| AH39/800 |
Tr850X7 |
800 |
750 |
245 |
KML/850 |
239/800K |
| AH39/850 |
Tr900X7 |
850 |
800 |
258 |
KML/900 |
239/850K |
| AH39/900 |
Tr950X8 |
900 |
850 |
265 |
KML/950 |
239/900K |
| AH39/950 |
Tr1000X8 |
950 |
900 |
282 |
KML/1000 |
239/950K |
| AH39/1000 |
Tr1060X8 |
1000 |
950 |
296 |
KML/1060 |
239/1000K |
| AH39/1060 |
Tr1120X8 |
1060 |
1000 |
310 |
KML/1120 |
239/1060K |
AH241系列退卸套基本尺寸和参数 |
型号 |
尺寸(mm) |
适用的轴承号 |
重量(kg)
|
d |
d1 |
B3 |
G |
调心球子轴承 |
AH24122 |
110 |
105 |
82 |
M115×2 |
24112K |
|
AH24124 |
120 |
115 |
93 |
M130×2 |
24124K |
|
AH24126 |
130 |
125 |
94 |
M140×2 |
24126K |
|
AH24128 |
140 |
135 |
99 |
M150×2 |
24128K |
|
AH24130 |
150 |
145 |
115 |
M160×3 |
24130K |
|
AH24132 |
160 |
150 |
124 |
M170×3 |
24132K |
|
AH24134 |
170 |
160 |
125 |
M180×3 |
24134K |
|
AH24136 |
180 |
170 |
134 |
M190×3 |
24136K |
|
AH24138 |
190 |
180 |
146 |
M200×3 |
24138K |
|
AH24140 |
200 |
190 |
158 |
Tr210×4 |
24140K |
|
AH24144 |
220 |
200 |
170 |
Tr230×4 |
24144K |
|
AH24148 |
240 |
220 |
180 |
Tr260×4 |
24148K |
|
AH24152 |
260 |
240 |
202 |
Tr280×4 |
24152K |
|
AH24156 |
280 |
260 |
202 |
Tr300×4 |
24156K |
|
AH24160 |
300 |
280 |
224 |
Tr320×5 |
24160K |
|
AH24164 |
320 |
300 |
242 |
Tr340×5 |
24164K |
|
AH24168 |
340 |
320 |
269 |
Tr360×5 |
24168K |
|
AH24172 |
360 |
340 |
269 |
Tr380×5 |
24172K |
|
AH24176 |
380 |
360 |
271 |
Tr400×5 |
24176K |
|
AH24180 |
400 |
380 |
278 |
Tr420×5 |
24180K |
|
AH24184 |
420 |
400 |
310 |
Tr440×5 |
24184K |
|
AH24188 |
440 |
420 |
310 |
Tr460×5 |
24188K |
|
AH24192 |
460 |
440 |
332 |
Tr480×5 |
24192K |
|
AH24196 |
480 |
460 |
340 |
Tr500×5 |
24196K |
|
AH214/500 |
500 |
480 |
360 |
Tr530×6 |
241/500K30 |
|
AH214/530 |
530 |
500 |
370 |
Tr560×6 |
241/530K30 |
|
AH214/560 |
560 |
530 |
393 |
Tr600×6 |
241/560K30 |
|
AH214/600 |
600 |
570 |
413 |
Tr630×6 |
241/600K30 |
|
AH214/630 |
630 |
600 |
440 |
Tr670×6 |
241/630K30 |
|
AH214/670 |
670 |
630 |
452 |
Tr710×7 |
241/670K30 |
|
AH214/710 |
710 |
670 |
483 |
Tr750×7 |
241/710K30 |
|
AH214/750 |
750 |
710 |
520 |
Tr800×7 |
241/750K30 |
|
AH214/800 |
800 |
750 |
525 |
Tr850×7 |
241/800K30 |
|
AH214/850 |
850 |
800 |
560 |
Tr900×7 |
241/850K30 |
|
AH214/900 |
900 |
850 |
575 |
Tr950×8 |
241/900K30 |
|
AH214/950 |
950 |
900 |
605 |
Tr1000×8 |
241/950K30 |
|
AH214/1000 |
1000 |
950 |
645 |
Tr1060×8 |
241/1000K30 |
|
AH214/1060 |
1060 |
1000 |
665 |
Tr1120×8 |
241/1060K30 |
|
|
|
|
